Hight Intensity Focused Ultrasound

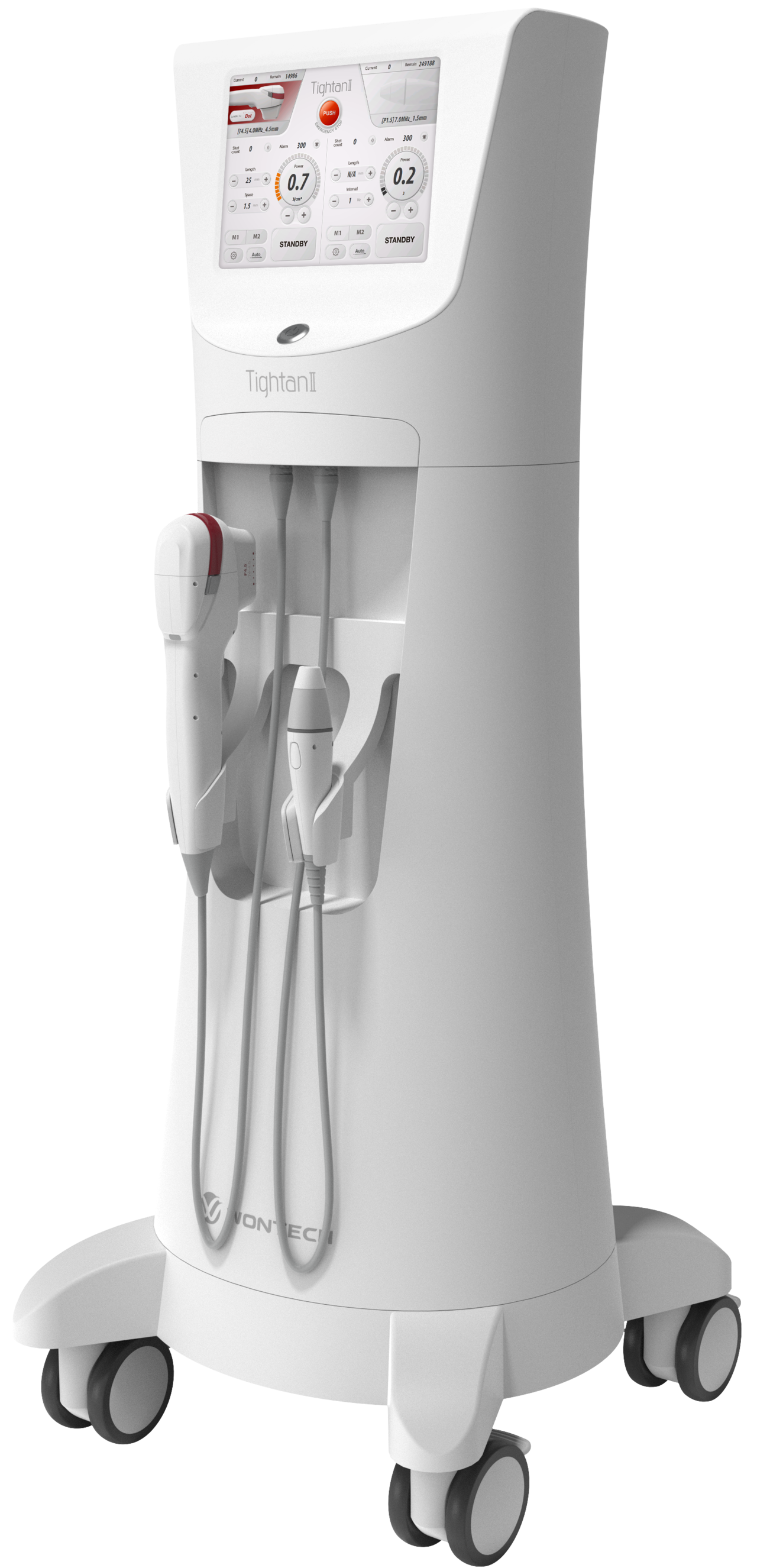

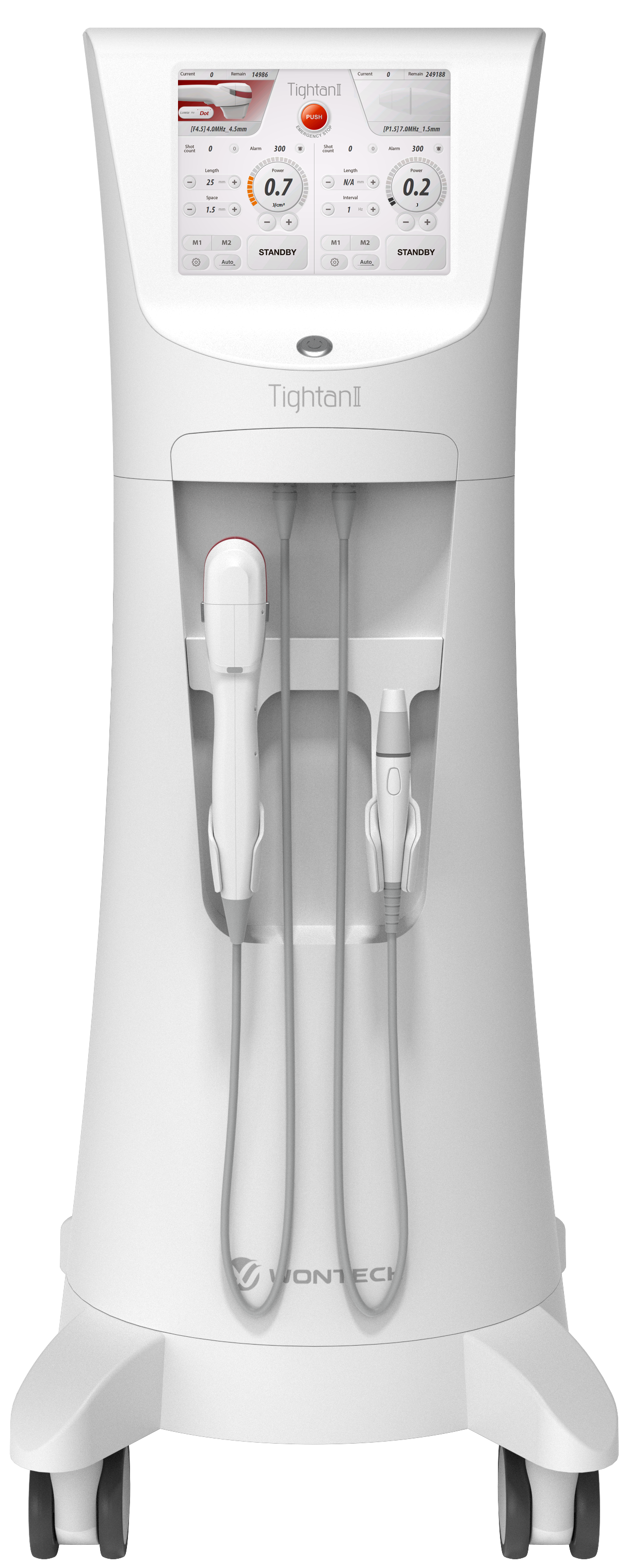

Upgraded HIFU Device

✔ Non-Invasive treatment for skin lifting & tightening

✔ Delivers energy to targeted layers without damaging surrounding tissue

✔ Immediate visible effect post-treatment

✔ Single session with results lasting up to 1 year

✔ Various cartridge selection based on facial areas

✔ PEN type handpiece for narrow area

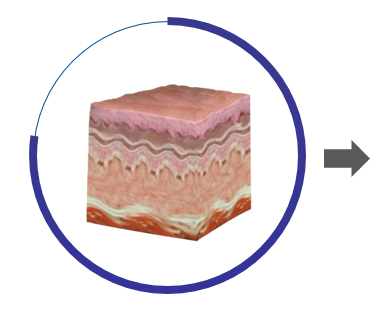

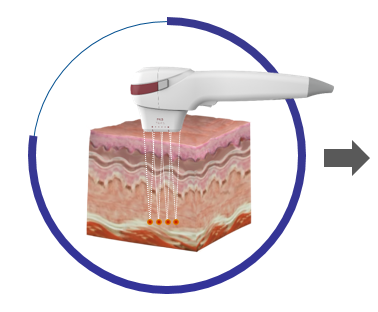

MECHANISM OF HIFU

Fractional HIFU Irradiation

Immediate

Lifting & Tightening Effects

Prolonged

Rejuvenation Effects

No damage to the skin surface

Precise targeting of specific skin layers

Fractional delivery of HIFU energy for

focused stimulation

Formation of thermal coagulation points

in target layer (e.g. SMAS)

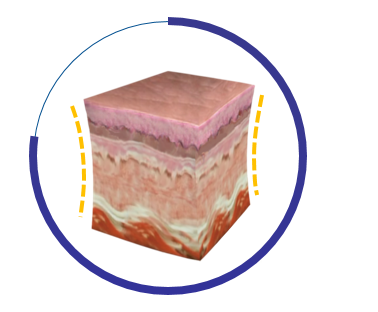

Immediate contraction of skin tissue

Visible lifting and tightening effect from the first session

Re-generation of collagen
and elastin prolongs
lifting & tightening effect

INDICATION

Face & Body

HANDPIECE

DOT/Linaer Handpiece

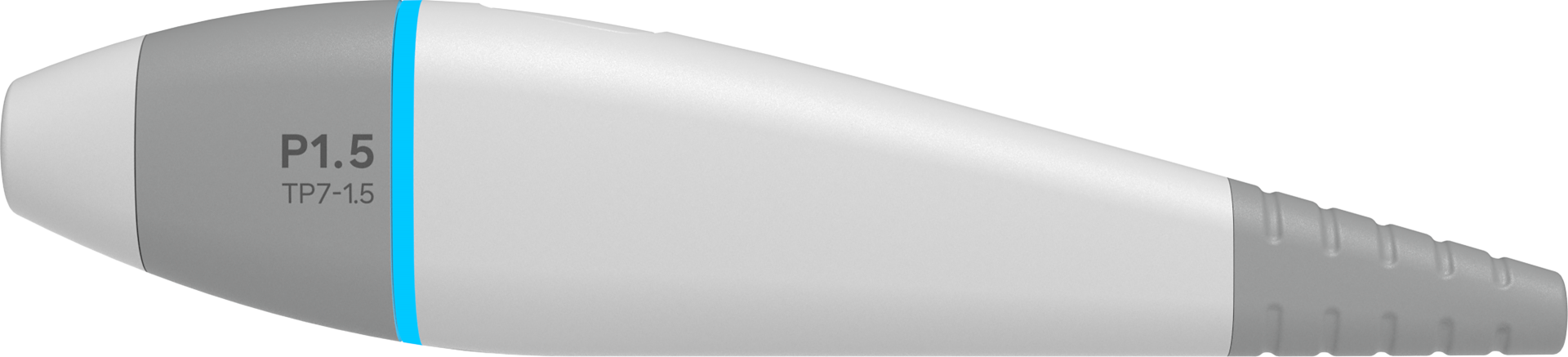

Magicpen

- 3Type Mode -
Single Mode

Auto Mode

Bidirection Mode

Delivers a single shot with one press of the button

Auto-repeated shots with one press of button

Two-way shot delivery while holding the button

Single & Auto Mode Selection

Auto Mode ON, Speed UP! Operator fatigue DOWN!

- 2Type Cartridge -
DotLinear

Fine treatment with dot mode

Powerful lifting & tightening effect


Precise and thorough treatment with linear mode

Faster procedure with less pain


Dot & linear Mode Selection

Patient Customized Treatment

CARTRIDGES

Available to treat multiple areas by selecting from five different cartridges

Secure a clear view easily during the procedure by its minimal contacting area & curved design

Able to see the exact point to be irradiated by marking the range of the irradiation to perform evenly

Able to check and refill the amount of water when necessary

ProductI1.5F3.0, F3.0LF4.5, F4.5LV6 OptionS9 Option

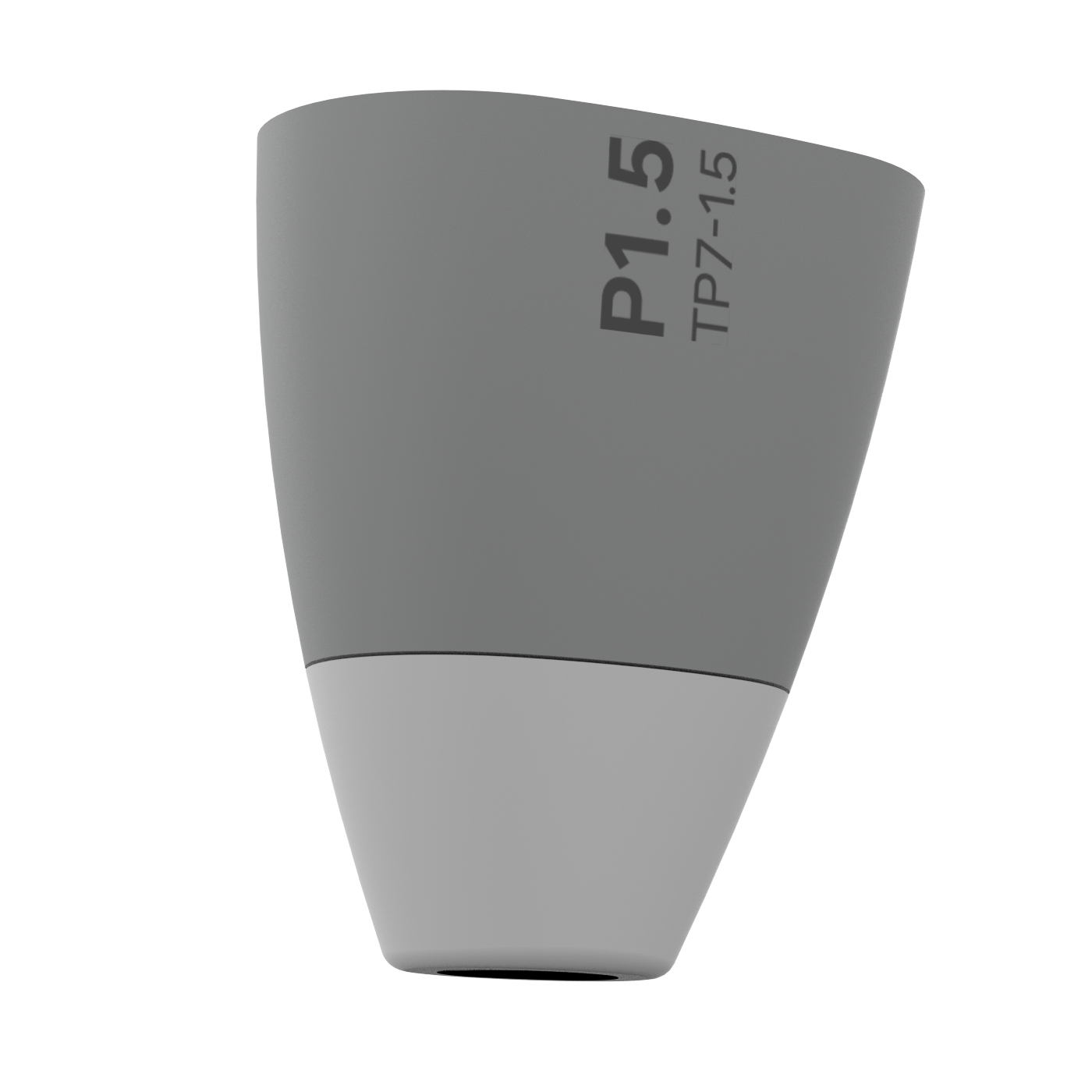

P1.5

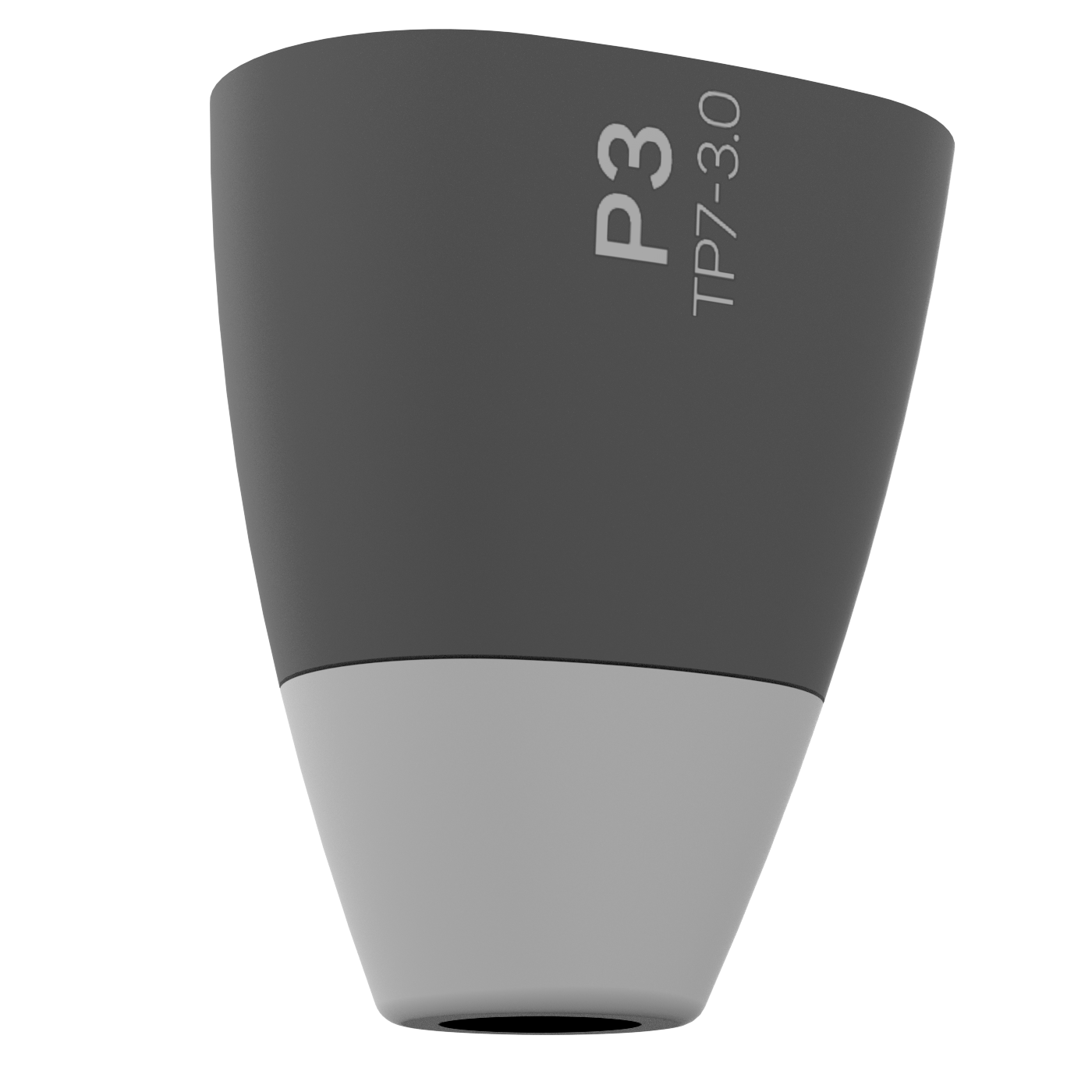

P3.0
Frequency7MHz7MHz4MHz2MHz2MHz
7MHz
7MHz
Depth1.5mm3.0mm4.5mm6.0mm9.0mm
1.5mm
3.0mm
Treatment AreaPeriorbital areaForehead Cheek
Double Chin Neck		Cheek
Double Chin		Double Chin
Forearm
Abdomen Thigh		Abdomen
Thigh
· Periorbital membrane
· Narrow area
Narrow area

SPECIFICATIONS

System TypeHIFU
(High Intensity Focused Ultrasound)
Max power
3 J (0.1 J step)
Cartridge
DOT

4MHz, 4.5mm / 7MHz, 1.5mm, 3.0mm

2MHz, 6.0mm, 9.0mm

LINEAR
4MHz, 4.5mm / 7MHz, 3.0mm
PEN
7MHz, 1.5mm, 3.0mm
Length
5 to 25mm (1mm step)
Spacing (DOT Cartridge only)
1.2 to 2mm (0.1mm step)
Dimensions
400(W) x 398.5(D) x 1,146.8(H) mm
Weight
37kg
Electrical
requirements
AC 100~240 V, 50/60 Hz, 300 VA
